简介：

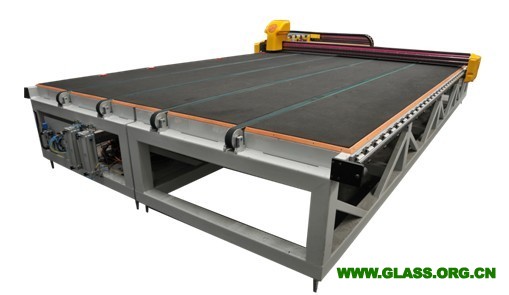

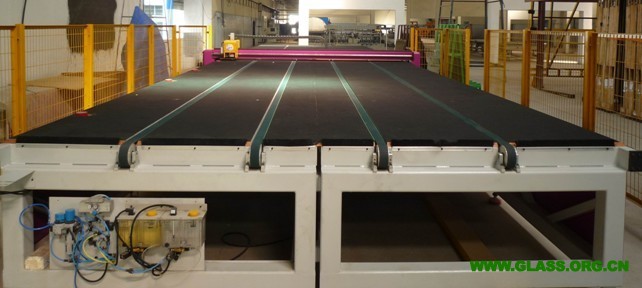

土耳其CMS公司在玻璃切割机领域十几年的努力和技术，FCM系列玻璃自动异形切割机（含LOW-E除膜）已经是一款技术和工艺均非常成熟稳定的机型。该机采用90%以上的德国材料。如，所有驱动电机，伺服电机，气动元件和电器控制元件均采用德国FESTO品牌。X和Y轴直线导轨更是采用了德国高技术、高精度的斜齿轮系统,该机型软件方面采用PerfectCUT(意大利)。此机具有完美的性能、外观、简易的操作。
主要技术参数
·Vibration free working and movement thanks to heavy and sturdy steel construction structure
·稳固的钢架结构使机器在运行和移动时无震荡现象
·Excellent precision table surface for perfect glass cutting and high quality glass breaking
·精确的切割台面能保证玻璃的完美切割和高质量掰片
·Table surface made by 22 mm thick strong MDF
·采用22毫米厚中密度纤维板作为切割台面
·Long-life and smooth cushion table surface
·经久耐用光滑的气浮台面
·All Axis has been processed by CNC machines all at one time to catch stable structure
·所有的轴都通过CNC机器一次性加工以达到稳定的结构
·Perfect cutting quality with Helical pinion and rack gear system
·螺旋小齿轮和齿条系统造就完美的切割质量
·Long-life metal head cutting diamonds
·经久耐用的金属切割头
·Precious Cutting bridge
·铝材制作的珍贵的切割桥
·Mechanical positioning system to make Glass referencing
·机械定位系统调整玻璃
·Laser scanner system with electronic positioning
·激光扫描电子定位系统
·Laser scanner system for shaped glasses
·激光扫描异形玻璃
·Automatic safety system against cutting head falling off the glass
·自动安全系统防止切割头掉落的玻璃上
·Straight and shape glass cutting feature
·玻璃直线切和异形切
·Low-E Edge Deletion system for straight and shape glass
·直线和异形玻璃的Low-E除边系统
·Long life metallic brush system for Low-E glass edge deletion (Patented to CMS Glass Machinery)
·Low-E除膜金属刷， 至少两年使用寿命（CMS 玻璃机器专利产品）
·Automatic glass cutting speed for clear and Low-E glass
·白玻和Low-E玻璃自动玻璃切割速度
·Hi-Tech operating head with an automatic cutting pressure
·具有自动切割压的高技术操作头
·High-tech buildings with a diamond head group
·高科技含量的切割头钻石头组件
·Automatic pressure system according to different glass thickness and shape glass
·根据不同的玻璃厚度和玻璃形状而设定压力的自动压力系统
·Vinyl Glass cutting feature
· 可切表面贴有?；つさ牟Ａ?/span>
Optimization Software:
优化软件
·Perfect Cut Suite with 1 key
·完美切割软件密码锁
·Laminated Glasses are cut with accuracy of +/- 05mm via mirroring feature of the software
·夹层玻璃切割精度+/-0.5mm，
The optimization software includes the following modules:
优化软件含以下组件
- Perfect CUT Optimization Software
- 完美切割优化软甲
- Perfect CAD Drawing Software
- 完美CAD绘图软件
- Perfect DXF
import ing DXF files into the software library - 完美DXF DXF文件导入软件库
- Perfect LABEL Label preparing and printing software
- 完美标签贴标签的软件
- Perfect Shape A program for parametric shape management with ready library
- 完美图形存储了大量的切割图形信息
- Perfect TV Transfers the cutting layouts to the LCD screen for easy breaking
- 完美TV传送切割布局图到LCD显示屏上，以方便确认掰片
- Perfect Scan Scanning Program
- 完美扫描扫描程序
Control System:
控制系统
- Axis are controlled by servo motors to achieve the high speed
- 伺服电机控制轴已到达高速度
- PC based control panel with Windows operating system
- Window电脑操作系统控制
- User friendly and multi language user interface
- 友好多语言人机界面
- Data transfer to cutting section by Network cable flash disk or any other portable device
- 数据传输到切割部分通过网线和其他便携装置
- Data transfer to Automatic Profile Bending Machines
- 数据传输到自动弯板机
- Remote Control System for technical assistance purposes
- 远程控制系统
- CD/DVD-ROM driver, Network Card, Wireless, 1 GB Ram, Intel Atom Processor, 300 GB Hard Disk Driver
- CD/DVD-Rom驱动，网卡， 无线网卡，1GB内存，因特尔ATOM处理器，300GB硬盘
- 19 inch LCD wide screen
- 19英寸显示屏
TECHNICAL DATA
|
SPECIFICATIONS
|
FCM-3725-SL-V3
|
FCM-4000-SL-V3
|
FCM-6032-SL-V3
|
|
Maximum Glass Size
最大切割尺寸
|
3700 x 2550 mm
|
4000 x 2850 mm
|
6000 x 3210 mm
|
|
Processable Glass Thickness
加工玻璃厚度
|
2 - 19 mm
|
||
|
Cutting Speed
切割速度
|
130 m/min
|
||
|
Low-E Grinding Speed
Low-E除膜速度
|
80 m/min
|
||
|
Cutting Tolerance
切割误差
|
+/- 0.25 mm
|
||
|
Axis Control
轴控制
|
Servo Controlled伺服控制
|
||
|
Axis Movements
轴运动
|
Rack and Pinion System斜齿轮系统
|
||
|
Shape Cutting and Low-E Grinding
异形切和Low-E除膜
|
Standard标准
|
||
|
Automatic Cutting Pressure
自动切割压力
|
Standard标准
|
||
|
Automatic Speed Adjustment
自动速度调整
|
Standard标准
|
||
|
Laser Scanner
激光扫描
|
Standard标准
|
||
|
Electronic Alignment of Glass Sheet
玻璃板电子直线对准
|
Standard标准
|
||
|
Vinyl Cutting
乙烯基切割
|
Standard标准
|
||
|
Remote Control
远程控制
|
Standard标准
|
||
|
Optimization Software
优化软件
|
完美切割软件包
|
||
|
Operating System
操作系统
|
Windows 7
|
||
|
Data transfer to Cutting Table
数据传输
|
网线 or USB
|
||
|
Cutting Oil Tank
切割液压油
|
2 pieces
|
||
|
Width
宽
|
3300 mm
|
3850 mm
|
4100 mm
|
|
Length
长
|
4900 mm
|
5250 mm
|
7250 mm
|
|
Working Height
工作高度
|
900 mm
|
900 mm
|
950 mm
|
|
Total Weight
总重量
|
2500 kg
|
2850 kg
|
3500 kg
|
|
Air Pressure
气压
|
6 bar
|
6 bar
|
6 bar
|
|
Air Consumption
空气消耗量
|
50 lt/min
|
50 lt/min
|
50 lt/min
|
|
Voltage
电压
|
400V 3NPE
|
400V 3NPE
|
400V 3NPE
|
|
Frequency
频率
|
50 Hz / 60 Hz
|
50 Hz / 60 Hz
|
50 Hz / 60 Hz
|
|
Total Power
总功率
|
10,5 KW
|
10,5 KW
|
13 KW
|
